Introduction
This is a weakly supervised ASR recipe for the LibriSpeech (clean 100 hours) dataset. We train a conformer model using Bypass Temporal Classification (BTC)/Omni-temporal Classification (OTC) with transcripts with synthetic errors. In this README, we will describe the task and the BTC/OTC training process.
Note that OTC is an extension of BTC and supports all BTC functions. Therefore, in the following, we only describe OTC.
Task

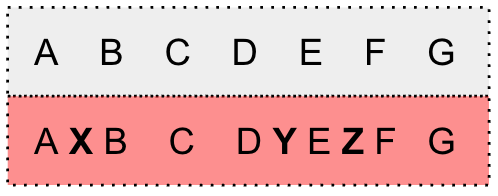

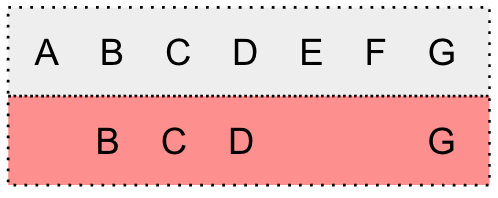

We propose BTC/OTC to directly train an ASR system leveraging weak supervision, i.e., speech with non-verbatim transcripts. This is achieved by using a special token \star to model uncertainties (i.e., substitution errors, insertion errors, and deletion errors)
within the WFST framework during training.

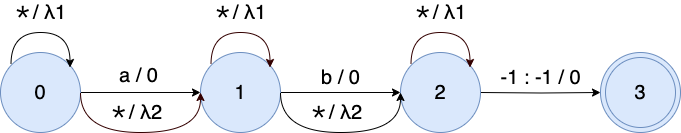

We modify G(\mathbf{y}) by adding self-loop arcs into each state and bypass arcs into each arc.
We incorporate the penalty strategy and apply different configurations for the self-loop arc and bypass arc. The penalties are set as
\lambda_{1_{i}} = \beta_{1} * \tau_{1}^{i},\quad \lambda_{2_{i}} = \beta_{2} * \tau_{2}^{i}
for the $i$-th training epoch. \beta is the initial penalty that encourages the model to rely more on the given transcript at the start of training.
It decays exponentially by a factor of \tau \in (0, 1), gradually encouraging the model to align speech with \star when getting confused.

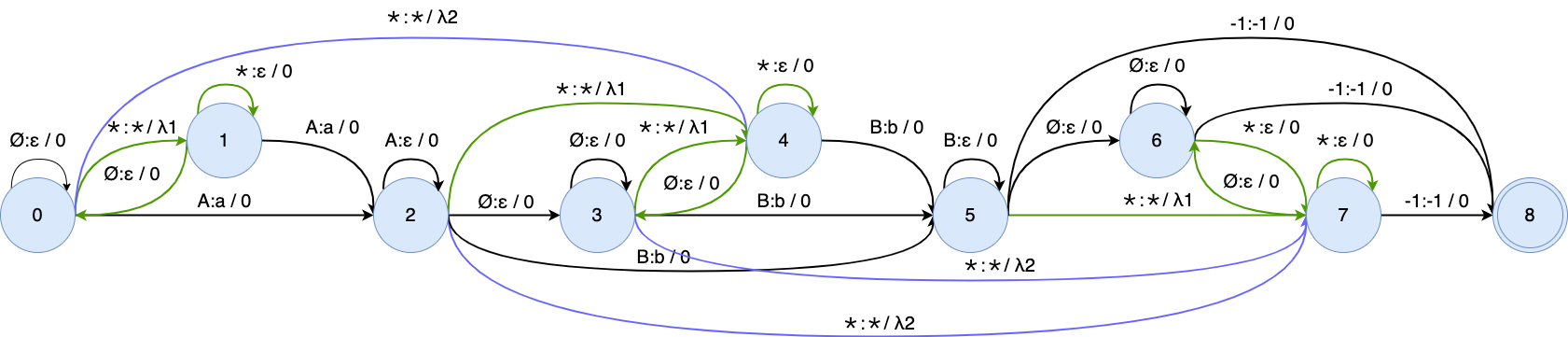

After composing the modified WFST G_{\text{otc}}(\mathbf{y}) with L and T, the OTC training graph is shown in this figure:

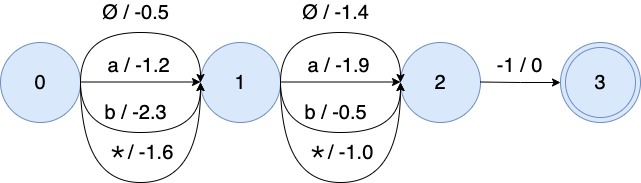

The \star is represented as the average probability of all non-blank tokens.
The weight of \star is the log average probability of "a" and "b": \log \frac{e^{-1.2} + e^{-2.3}}{2} = -1.6 and \log \frac{e^{-1.9} + e^{-0.5}}{2} = -1.0 for 2 frames.
Description of the recipe
Preparation
# feature_type can be ssl or fbank
feature_type=ssl
feature_dir="data/${feature_type}"
manifest_dir="${feature_dir}"
lang_dir="data/lang"
lm_dir="data/lm"
exp_dir="conformer_ctc2/exp"
otc_token="<star>"
./prepare.sh \
--feature-type "${feature_type}" \
--feature-dir "${feature_dir}" \
--lang-dir "${lang_dir}" \
--lm-dir "${lm_dir}" \
--otc-token "${otc_token}"
This script adds the 'otc_token' ('<star>') and its corresponding sentence-piece ('▁<star>') to 'words.txt' and 'tokens.txt,' respectively. Additionally, it computes SSL features using the 'wav2vec2-base' model. (You can use GPU to accelerate feature extraction).
Making synthetic errors to the transcript (train-clean-100) [optional]
sub_er=0.17
ins_er=0.17
del_er=0.17
synthetic_train_manifest="librispeech_cuts_train-clean-100_${sub_er}_${ins_er}_${del_er}.jsonl.gz"
./local/make_error_cutset.py \
--input-cutset "${manifest_dir}/librispeech_cuts_train-clean-100.jsonl.gz" \
--words-file "${lang_dir}/words.txt" \
--sub-error-rate "${sub_er}" \
--ins-error-rate "${ins_er}" \
--del-error-rate "${del_er}" \
--output-cutset "${manifest_dir}/${synthetic_train_manifest}"
This script generates synthetic substitution, insertion, and deletion errors in the transcript with ratios 'sub_er', 'ins_er', and 'del_er', respectively. The original transcript is saved as 'verbatim transcript' in the cutset, along with information on how the transcript is corrupted:
- '[hello]' indicates the original word 'hello' is substituted by another word
- '[]' indicates an extra word is inserted into the transcript
- '-hello-' indicates the word 'hello' is deleted from the transcript
So if the original transcript is "have a nice day" and the synthetic one is "a very good day", the 'verbatim transcript' would be:
original: have a nice day
synthetic: a very good day
verbatim: -have- a [] [nice] day
Training
The training uses synthetic data based on the train-clean-100 subset.
otc_lang_dir=data/lang_bpe_200
allow_bypass_arc=true
allow_self_loop_arc=true
initial_bypass_weight=-19
initial_self_loop_weight=3.75
bypass_weight_decay=0.975
self_loop_weight_decay=0.999
show_alignment=true
export CUDA_VISIBLE_DEVICES="0,1,2,3"
./conformer_ctc2/train.py \
--world-size 4 \
--manifest-dir "${manifest_dir}" \
--train-manifest "${synthetic_train_manifest}" \
--exp-dir "${exp_dir}" \
--lang-dir "${otc_lang_dir}" \
--otc-token "${otc_token}" \
--allow-bypass-arc "${allow_bypass_arc}" \
--allow-self-loop-arc "${allow_self_loop_arc}" \
--initial-bypass-weight "${initial_bypass_weight}" \
--initial-self-loop-weight "${initial_self_loop_weight}" \
--bypass-weight-decay "${bypass_weight_decay}" \
--self-loop-weight-decay "${self_loop_weight_decay}" \
--show-alignment "${show_alignment}"
The bypass arc deals with substitution and insertion errors, while the self-loop arc deals with deletion errors. Using "--show-alignment" would print the best alignment during training, which is very helpful for tuning hyperparameters and debugging.
Decoding
export CUDA_VISIBLE_DEVICES="0"
./conformer_ctc2/decode.py \
--manifest-dir "${manifest_dir}" \
--exp-dir "${exp_dir}" \
--lang-dir "${otc_lang_dir}" \
--lm-dir "${lm_dir}" \
--otc-token "${otc_token}"
Results (ctc-greedy-search)
| Training Criterion | ssl | fbank | ||
| test-clean | test-other | test-clean | test-other | |
| CTC | 100.0 | 100.0 | 99.89 | 99.98 |
| OTC | 11.89 | 25.46 | 20.14 | 44.24 |
Results (1best, blank_bias=-4)
| Training Criterion | ssl | fbank | ||
| test-clean | test-other | test-clean | test-other | |
| CTC | 98.40 | 98.68 | 99.79 | 99.86 |
| OTC | 6.59 | 15.98 | 11.78 | 32.38 |
Pre-trained Model
Pre-trained model: https://huggingface.co/dgao/icefall-otc-librispeech-conformer-ctc2
Citations
@inproceedings{gao2023bypass,
title={Bypass Temporal Classification: Weakly Supervised Automatic Speech Recognition with Imperfect Transcripts},
author={Gao, Dongji and Wiesner, Matthew and Xu, Hainan and Garcia, Leibny Paola and Povey, Daniel and Khudanpur, Sanjeev},
booktitle={INTERSPEECH},
year={2023}
}
@inproceedings{gao2023learning,
title={Learning from Flawed Data: Weakly Supervised Automatic Speech Recognition},
author={Gao, Dongji and Xu, Hainan and Raj, Desh and Garcia, Leibny Paola and Povey, Daniel and Khudanpur, Sanjeev},
booktitle={IEEE ASRU},
year={2023}
}
